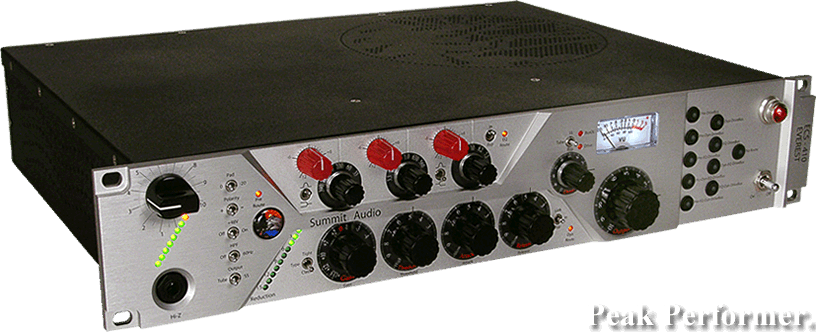

Summit ECS-410 Everest Channel Strip

  • Image 1
Price:
$3,300.00
Brand:
Availability:
In Stock
Shipping:
Free Shipping
Quantity:


Product Description

All for one, one for all.

Everest is a state of the art channel strip comprised of four completely independent modules, each with its own fully balanced input and output, and the ability to effortlessly route and reroute each module internally entirely in the analog domain.

Technical Specifications
Size and Weight
Size and Weight
Height:
3.5 inches (8.89 cm)
Width:
19 inches (48.26 cm)
Depth:
17 inches (43.18 cm)
Weight:
26 pounds (11.79 kg)
Power Configuration
Internal AC Supply
100VAC-240VAC (different fuse for 100V,
115V, and 240V)
Dc1 Dual Mode Compressor Data
Size and Weight

THD+N: (@+4dB, with no compression but
through gain cell)
0.025% (A weighted), 0.041% (unweighted with
6dB compression) 0.013% (A weighted), 0.013%
(unweighted)
Frequency Response: 5dB 200kHz +/- 3dB,
5Hz-136kHz +/-0.5dB
Gain: -4dB to +10dB
Attack: variable from 4mS to 100mS
Release: variable from50mS to 1S

Ratio: Classic or Tight
Metering: 10 segment LED for gain reduction
IO: Balanced XLR +4dB in and out,
1/4" side chain, 1/4" stereo link
Db2- Drive Bus Master Output and Overdrive
Size and Weight
THD+N (@+4dB, no cut or boost):
Bypass: 0.002% (A weighted), 0.008% (unweighted)
Tube: 0.3% to overdrive (unweighted)
Solid State: 0.013% to overdrive (unweighted)

Frequency Response:
Tube 5Hz - 50kHz +/- 2dB, 5Hz - 25kHz +/- 0.5dB
Solid State 5Hz- 200kHz +/- 2dB, 5Hz-130kHz +/- 0.5dB
Gain: +20dB
Type: Tube (12AX7A) or discrete transistor
Metering: analog VU output level
IO: balanced XLR +4dB in and out, -10dB 1/4" TRS out
Mz2 Microphone Preamplifier
Size and Weight

Max gain: +60dB (plus 20dB when routed
through the Db2 drive bus output)
THD+N (@ +30dB): 0.008% (A weighted), 0.01% (unweighted)
Max Out: +25dB
Frequency Response: Solid State 10Hz-200kHz +/- 3dB;
15Hz-120K +/-0.5dB
Tube 15Hz-159K +/-3dB, 0Hz-65Hz +/- 0.5dB
Input impedance: 2K ohms
Type: Switchable tube (12AX7A) or discrete transistor
HPF: 60Hz, 6dB/8va
Metering: 10 segment LED
Phantom Power +48VDC
Pad: -20dB
Polarity: 0 or 180 degrees
IO: Balanced XLR mic in, front panel 1/4" Hi-Z in, balanced XLR +4dB
(nominal) out, 1/4" TRS -10dB (nominal)
Fe1- Passive 3 Band Equalizer
Size and Weight

THD+N (@+4dB, no cut or boost): (A weighted) 0.009%,
(unweighted) 0.025%
Frequency Response: 5Hz- 100kHz +/-0.5dB ,
5Hz- 200kHz +/-3dB

Frequencies:
Low 33, 60, 100, 150, 270, 390HZ (peak or shelf)
Mid peaking bandwidth: 2 octaves
High shelf: 6dB/8va, peaking bandwidth 2 octaves
IO: balanced XLR +4dB in and out


Warranty Information

1 year
