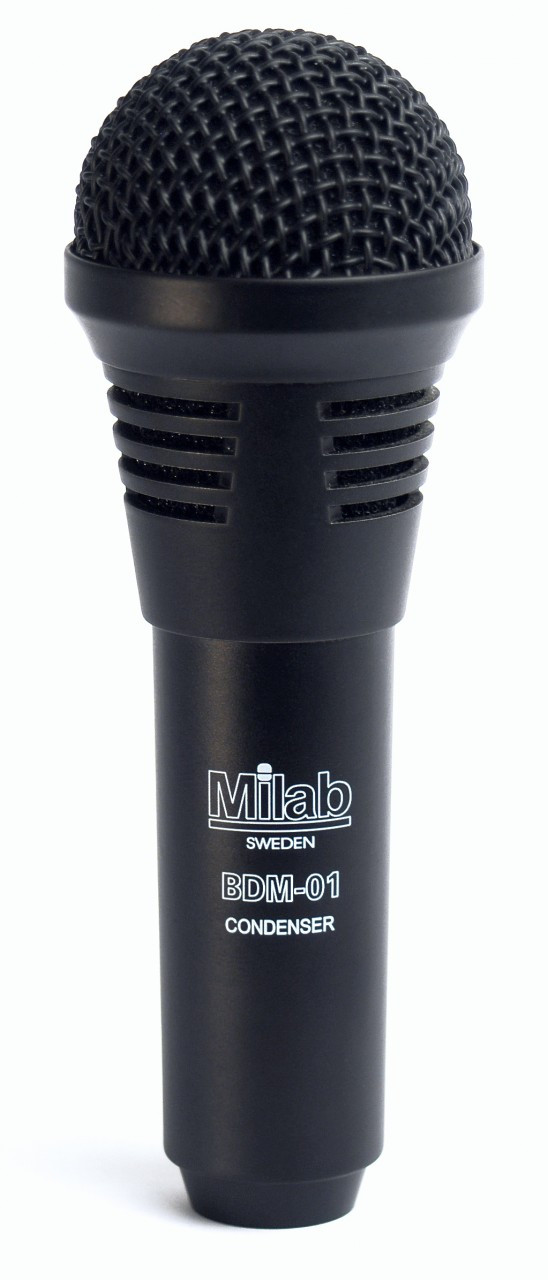

The BDM-01 is a dedicated bass drum microphone that is equally at home in the studio and on the road. It is built around our high-class VM-44 capsule and every detail has been specifically designed for the power and sound of the bass drum and other powerful sound sources. The BDM-01 handles an impressive 155 dB without audible distortion.

The high-end condenser capsule gives superior attack and HF response, and the frequency curve has been tailored for that perfect bass drum sound with a presence peak around 5 KHz. The dynamic range, sensitivity and pop filters are also optimised for the bass drum.

Features:

Cardioid
Transformerless
Rubber fitted capsule
155 dB SPL
Excellent pop protection
Gold-plated XLR connector
Specifications:

Frequency response: 20Hz-20kHz
Polar pattern: Cardioid
Max. SPL (1% THD at 1 kHz): 155 dB
Sensitivity at 1 kHz: 2 mV/Pa ( 1dB)
A-weighted noise level (IEC 179-A): 27 dB
Power supply: 48 V Phantom (DIN/IEC)
Current consumption: 4 mA
Output impedance: Minimum load impedance: 1 kO
Connection: 3-pin XLR
Net weight: 210 g
Length: 142 mm
Diameter: 24/47 mm
