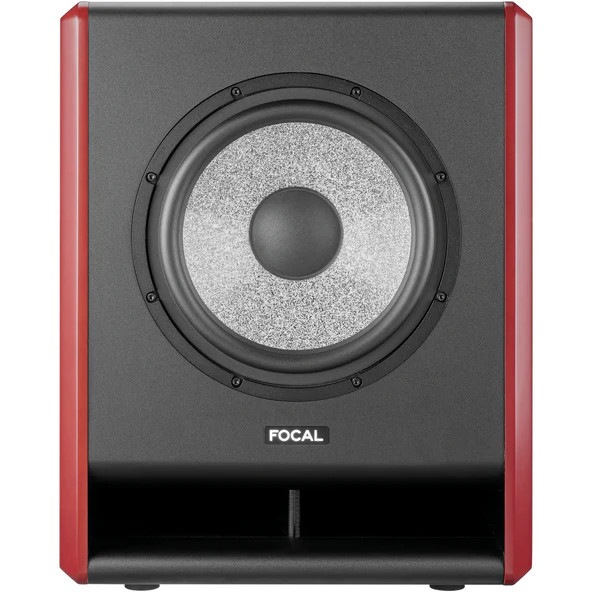

Style and Substance - The Focal Sub12 ST6 Series 1000 W Subwoofer

Sub12 is a highly articulate subwoofer offering a level of definition, dynamics and sub-bass that is unrivalled in its price bracket. Thanks to its high excursion woofer and 1000W peak amplification, the Sub12's transcription is more powerful and truer than ever.

• Composite sandwich ‘W’-cone: sound neutrality, no distortion
• Large laminar port: no port noises or distortion
• Automatic disengageable stand-by mode
• Carry handle

SPECIFICATIONS

• Frequency Response (@ -3dB): 30 Hz - 400 Hz
• Low Cut-Off frequency (@ -6 dB): 28 Hz
• Maximum SPL (Average CEA2010B 30-200 Hz free field @ 1m): 124.5 dB
• Inputs: Balanced XLR LFE 10 kΩ, Left & Right 10 kΩ
• Outputs: Balanced XLR LFE (in parallel), Left & Right 50 Ω
• Bass Amplifier Stage: 600 W RMS
• Nominal Power Supply: ~100–120 VAC/220–240 VAC 50/60 Hz
• User Controls: Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF
• Fuses: ~100-120V, T10AL/250V, ~220-240V, T5AL/250V
• Internal signal processing and functions - Subwoofer section
• Left/right mono summation
• LFE + mono low-pass
• 24 dB/octave
• Phase adjustment
• Polarity selection
• Switchable high-pass crossover, frequency cut-off selection
• 24dB/octave
• Bass: 1 x 13 inches (33 cm) x ‘W’ cone
• Shielding: No
• Construction: Dark red natural veneering side panels, black body
• Dimensions: 23 5/8 x 19 1/8 x 22 3/8 inches (60 x 48.7 x 56.8 cm)
• Weight: 127.8 lbs (58 kg)
• Temperature Range: During use: 5-35 °C, in storage: 0-50 °C
