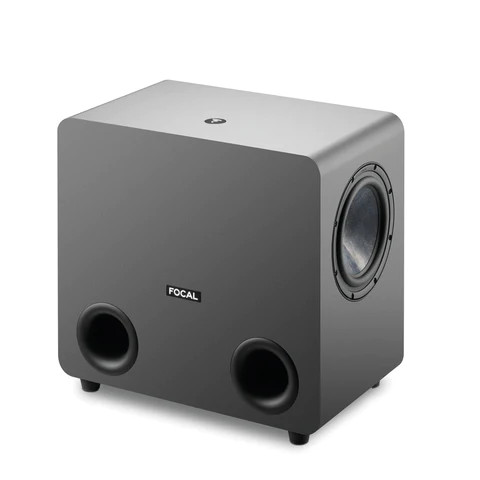

Sound with Precision - The Focal Sub One 8-Inch Active Subwoofer

Sub One is a subwoofer composed of two 8-inch (20 cm) Slatefiber cone woofers, manufactured in France by Focal. With a total RMS power of 200W, it covers a frequency band from 32Hz to 120Hz. Sub One offers great dynamics whilst maintaining low distortion. Designed with a focus on its width and front vents, Sub One integrates easily into a room, along a wall or under a desk.

• Fully adjustable low-pass crossover + volume + phase; polarity switch; Footswitch input; mute with linking between several subwoofers. Excellent subwoofer-monitor acoustic sealing
• Two 8-inch (20 cm) Slatefiber cones made in France
• 200W RMS amplifier
• LFE, left and right inputs, left and right outputs. 2.1 low frequency management system for optimum satellite return
• Large front vents stable tonal balance, optimum integration
• Long excursion, high efficiency subwoofer. Reproduction of sonic micro-details for precise adjustment of signal compression
• Includes protection grille

SPECIFICATIONS

• Frequency Response (+/- 3 dB): 32 Hz – 120 Hz
• Maximum SPL: 114 dB SPL (peak @ 1 m)

• Left, Right, LFE
• Electronically balanced / 110 kOhms
• 3-point female XLR
• Variable

• Left + Right
• 3-point male XLR in parallel on inputs

• Left + Right mono summation
• 60 Hz or 90 Hz high-pass crossover
• Adjustable low-pass crossover, 24 dB/octave
• Phase adjustment
• Polarity

• Subwoofer level adjustment (sensitivity)
• Low-pass crossover cut-off frequency adjustment
• Phase adjustment
• Polarity inverter
• External mute (controlled by a pedal)

7/8-inch (22 mm) MDF panel

• Internal braces
• Dark grey vinyl finish

• Size (H x W x D): 17.14 x 14.41 x 17.32 inch / 435.5 x 366 x 440 mm
• Weight: 40.8 lb / 18.5 kg

• Amplification: 2 x 100 W RMS, D-class
