ELA M 260 tube microphone with interchangeable TK60 Cardioid, TK61 Omnidirectional and TK62 Hypercardioid capsules
Each system includes:
M 260 Tube Microphone
TK60 Cardioid Capsule
TK61 Omni Capsule
TK62 Hypercardioid Capsule
M 902 Power Supply
M 803R Right Angle 7-Pin XLR Tube Microphone Cable – 7m
M 761 Elastic Shock Mount
WS20 20mm Foam Windscreen
ZC60 Zipper Case

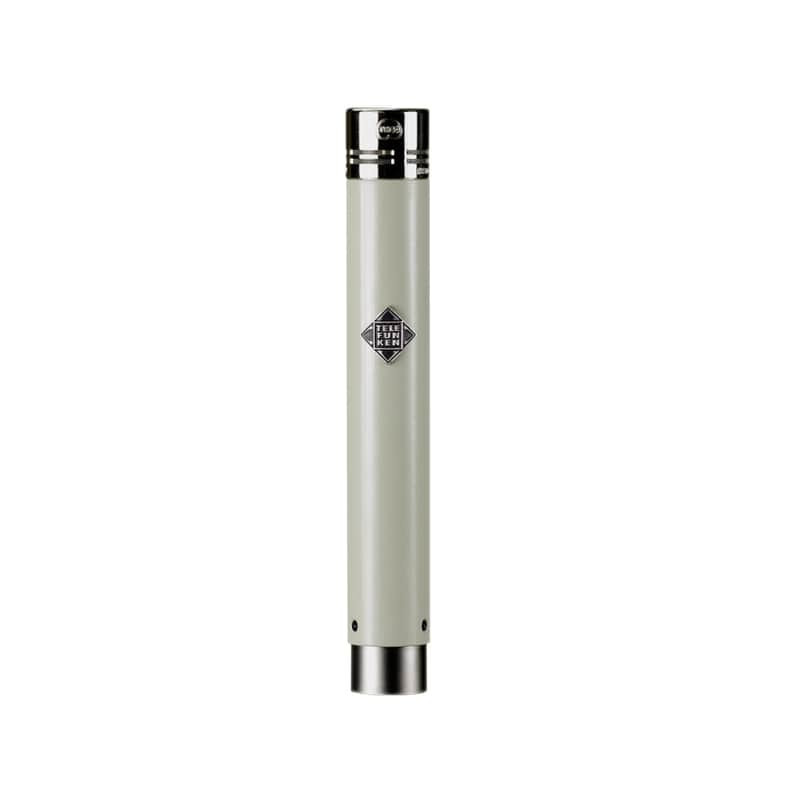

ELA M 260
One of the few small diaphragm tube microphones available today, the ELA M 260 is an absolute first choice for acoustic instrument recording. Everything from stringed instruments to drum overheads will benefit from the 260’s perfect combination of small diaphragm precision and classic tube warmth. Its tonality and detail when capturing acoustic instruments, especially strings, brass, woodwind and percussion is unrivaled. Hand-built in the USA, the ELA M 260 is available Cardioid only or with all capsule options (Master Set), as well as in Stereo and Tri-Mono (Decca Tree) packages, which include an American-made power supply and matched thread-on interchangeable capsules in a premium flight case.
Technical Specifications
Type: Vacuum Tube Condenser Polar Pattern: Cardioid, Omnidirectional, Hypercardioid Frequency Range: 20 Hz – 20 kHz, ±3 dB Power Source: External Power Supply Capsule: TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on Tube: NOS Philips 5840W Transformer: TELEFUNKEN Elektroakustik T60 Sensitivity: 16.5 mV/Pa, ±1 dB THD at 1kHZ at 1Pa (Amplifier): < 0.15% Output Impedance: 200 Ω Maximum SPL (for 1% THD): 135 dB S/N Ratio: 83 dBA Self Noise (Amplifier): 11 dBA Dimensions: 140 mm L x 20 mm Dia Weight: 116 g Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case
