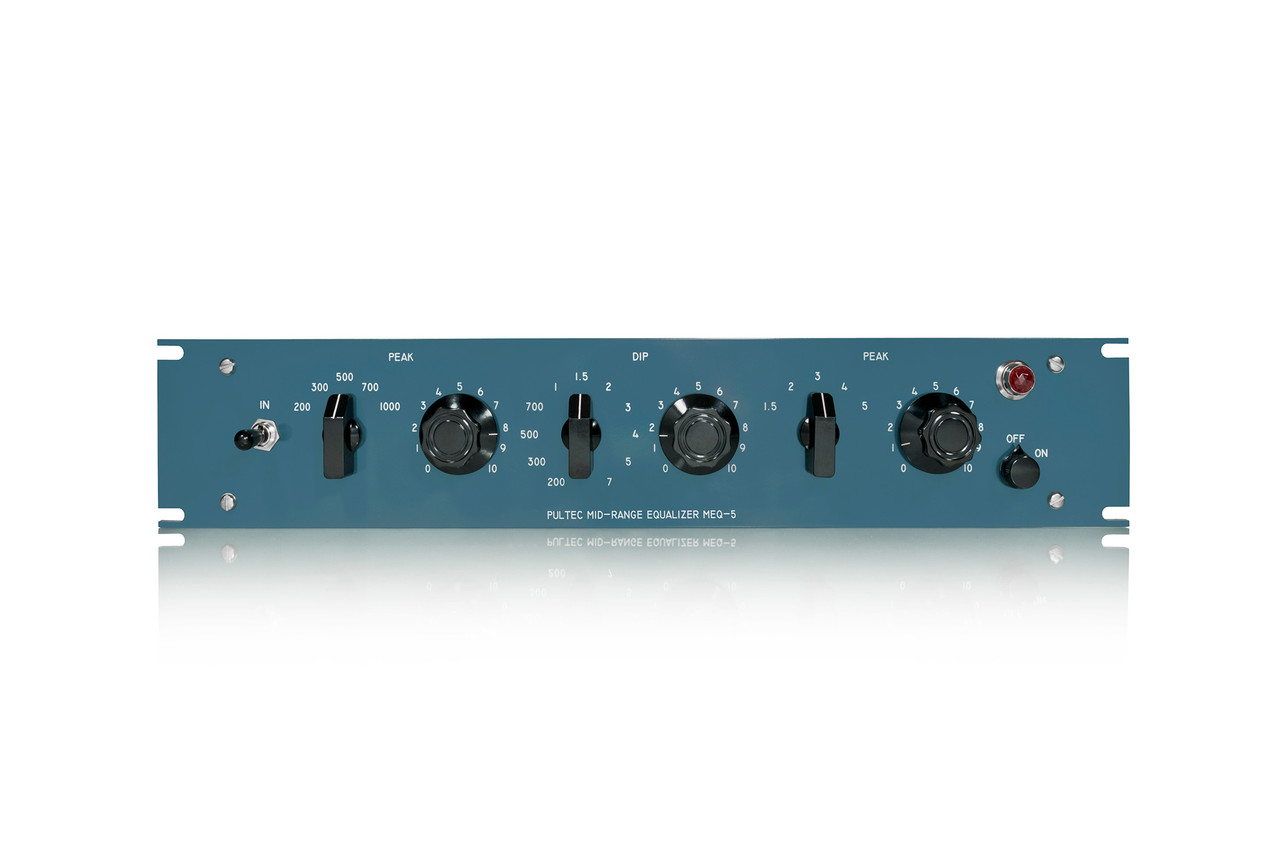

Pultec MEQ-5 Equalizer

  • Image 1
Price:
$3,415.50
Brand:
Availability:
in stock
Shipping:
Free Shipping
Quantity:


Product Description

The MEQ-5 provides exacting control of the “power region” in program material, that frequency range from about 300 Hz to 5000 Hz in which most of the sound energy is concentrated.  The ear is especially sensitive to sounds in this region.  In this region, even small resonances in studio acoustics and microphone and speaker responses are very evident in their effect on the listenability of the sound.  Three independent sets of controls make it possible to boost on a peak curve at 200 – 1000 Hz while simultaneously boosting on a peak curve at 1.5 – 5 kHz, while simultaneously dipping at 200 – 7000 Hz.  Guitars, vocals, horns, strings, keyboards, snares, toms, anything with significant midrange that requires complex contouring is a candidate for the MEQ-5.

SPECIFICATIONS



Low-midrange peak boost: 200, 300, 500, 700, 1000 CPS, 0 – 10 dB

High-midrange peak boost: 1.5, 2, 3, 4, 5 KCS, 0 – 8 dB

Dip Atten: 200, 300, 500, 700 CPS and 1, 1.5, 2, 3, 4, 5, 7 KCS, 0 – 10 dB

Input Transformer: 600 Ohms

Output Transformer: 600 Ohms

Noise: Below -75 dBm

Distortion: ≤ 0.15% at +10 dBm into 600 Ohms

Amplifier: 20 CPS to 20 KCS, +0, -1 dB ref 1KCS

Tubes: 1 ea 12AX7, 6AQ5, 6X4




Warranty Information

Full Factory warranty
