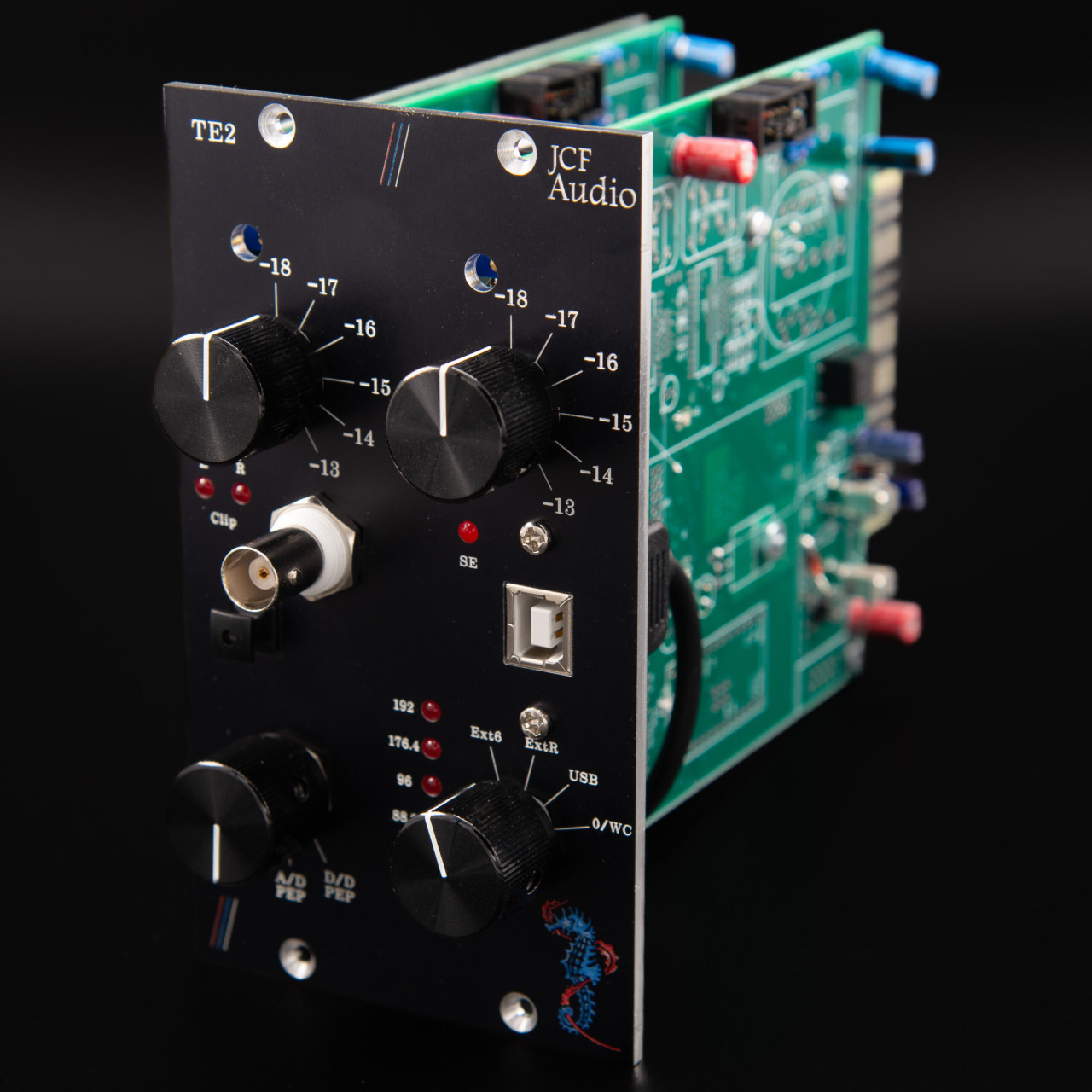

The TE2 is a High-Resolution 2 channel Analog to Digital converter for the 500 series format that draws on the history of the JCF Latte and the AD8.

The unit is a two-slot device and transmits the industry standard AES/EBU protocol through both 500 series outputs or as a dual-wire set at the behest of a jumper setting. The TE2 can derive its sync source from an internal reference at the 3 common multiples of both families of speeds, an AES/EBU input source on the Pin 6 buss, an external AES/EBU signal entering through the rear, USB soft- ware control, or optionally an incoming a word clock source. The left-hand side of the unit’s AES/EBU output becomes an input in when directed to receive sync from the rear jack. “R” denoting “Rear”, not “Right”. A simple XLR adapter can be used to do this in the case of XLR connections. Patchbays need none.
