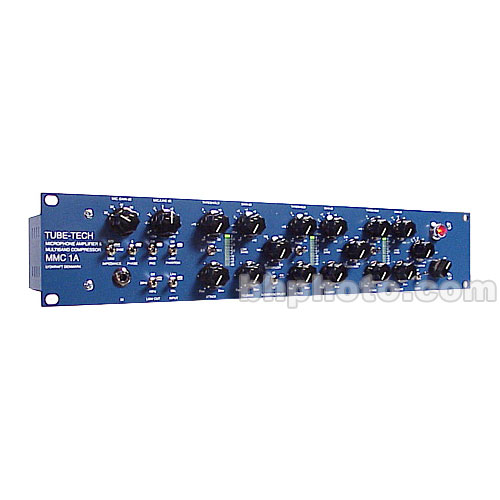

Tube-Tech MMC 1A

  • Image 1
Price:
$4,590.00
Brand:
Availability:
In Stock
Shipping:
Free Shipping
Quantity:


Product Description

This is a great mic preamp and compressor. Though the unit doesn't have an EQ, this compressor can act like an EQ by boosting or cutting the gain on the highs, mids or lows as each of these 3 bands is seperatated.

TUBE-TECH MMC 1A
Mic-preamplifier and Multiband Compressor Description:
The TUBE-TECH Mic-preamplifier and Multiband Compressor MMC 1A is a combined microphone and DI preamplifier, a separate balanced line input and a three-band optical compressor intended for recording directly to any recording media.
Mic -preamplifier:
The microphone preamplifier consists of a microphone input transformer (with a static screen) with a step-up of +10 dB, two dual tube preamplifiers with a stepped gain switch, with 10dB/step (+20 dB - +60 dB) giving a total gain range of +20dB to +70dB. The microphone input is provided with a switchable -20dB attenuation (PAD), switchable +48V phantom-power, a phase reverse and has swithable input impedance (600, 1200, 2400 Ohm).
The high impedance DI input is unbalanced and placed in the circuit directly after the input transformer. The gain range for this input is +10dB to +60dB. When in use, the microphone input is disabled.
A high pass filter for the microphone, DI and line input is switchable between off, 20 Hz and 40 Hz.
All inputs have a common stepped gain switch with 2dB/step (-10dB - +10dB).
Compressor:
The signal is fed to the two x-over networks, each made with a single RC circuit thereby preserving optimum summation of the three bands at the output. The x-over frequency between the low band and the mid band is variable from 60Hz to 300Hz or 240Hz to1200Hz and the x-over frequency between mid band and the high band is variable from 1,2kHz to 6kHz.
The signals from the three bands are then fed to the three separate side chain circuits, each common for left and right channel. After processing, the three signals are fed to a gain control, separate for each band and thereafter summed and send to the output gain, controlling the entire output level for all three bands.
The compressors are of the optical device type. It has controls for ratio, threshold, attack and release.
Lydkraft ApS Mose Allé 20, DK2610 Rødovre Denmark
1
(050610)
MIC-PREAMPLIFIER CONTROLS:
GAIN: IMPEDANCE: PHASE: PAD:
PHANTOM: DI:
MIC/LINE: LOW CUT:
The gain switch has a range from +20dB to +60dB in steps of 10dB.
There are a selecting of three input impedances: 600, 1200 or 2400 Ohms.
Reverses the phase of the mic input only.
This switch selects between 0dB or -20dB attenuation in front of the microphone transformer.
The +48V DC is supplied to the microphone input via two 6,81 Kresistors.
The Direct Input is an unbalanced, high impedance input intended for various instruments. It goes directly into the mic-preamplifier (bypasses the input transformer) and has a gain range of +10dB to +60dB
Switches between Mic/DI and the separate line input on the rear panel The highpass filter is selectable between off, 20 Hz (12dB/octave) and
40 Hz (6dB/octave). MIC/LINE GAIN: All input have a commen gain switch with 2dB/step (-10dB - +10dB)
COMPRESSOR CONTROLS:
X-OVER LOW: x4:
X-OVER HIGH:
Controls the frequency between the low band and the mid band. Continuously variable from 60 Hz to 300 Hz
Multipliesthe“x-overlow”frequencyby4,givingafrequencyof 240Hz to 1200Hz
Controls the frequency between the mid band and the high band. Continuously variable from 1,2 kHz to 6 kHz
The ratio control varies the ratio by which the input signal is compressed. If the ratio selected is 2:1, and the input signal increases 10 dB, the output signal is only increased by 5 dB. The ratio control is continuously variable from 1,5:1 to 10:1.
2
Lydkraft ApS Mose Allé 20, DK2610 Rødovre Denmark
RATIO:
(041121)
THRESHOLD:
ATTACK:
RELEASE:
GAIN:
OUTPUT GAIN:
COMP in/out:
The threshold is the point where the compressor begins to respond. It is defined as the point where the gain is reduced by 1 dB. The threshold is continuously variable from off to -20 dBU.
The attack control chooses how fast/slow the compressor responds to an increase in the input signal. The attack control is continuously variable from 1 to 100 milliseconds.
The release control chooses how fast/slow the compressor responds to a decrease in the input signal. The release control is continuously variable from 0,07 to 2,5 seconds.
The gain control is used to "make up" for the gain loss, which takes place when the unit is compressing. The gain control is continuously variable from off to +10 dB.
The gain control is used to "make up" for the gain loss, which takes place when the unit is compressing. The gain control is continuously variable from off to +10 dB.
This switch bypasses the whole compressor section.


Warranty Information

1 year
