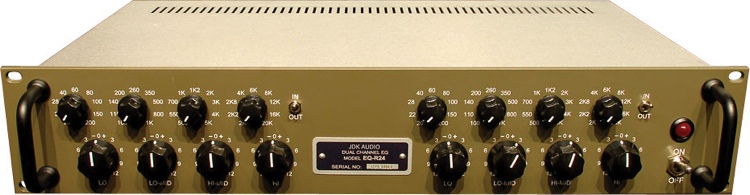

JDK R24 2 channel 4 band EQ

  • Image 1
Price:
$1,099.00
Brand:
Availability:
In Stock
Shipping:
Free Shipping
Quantity:


Product Description

The JDK Audio R24 Dual Channel, 4-band equalizer, features two identical channels of equalization in a rack mounted unit with internal power supply. The eq features continuously variable adjustment of frequency and gain using individual controls.
Features:
4 bands of equalization modeled after the classic APSI model 562 EQ
Each band offers continuously variable control of frequency and gain, using separate knobs
12 dB of boost/cut per band
All 4 bands are peak/dipping parametric configuration
Custom transformer balanced output
Fully balanced 1/4" and XLR input and output
High headroom +24 dB clip level
The EQ-R24 offers two channels of professional signal equalization. Modeled after the circuitry of classic high end EQ's, the R24 delivers an affordable combination of rugged construction and solid performance. EQ in and out are controlled by classic toggle switches, with gain and frequency selection accessed using individual control knobs.

Inputs: Balanced XLR and 1/4" parallel jacks
Outputs: Transformer Balanced XLR and 1/4" parallel jacks
(All measurements with 600 Ohm output load)
Bandwidth: +/- 0.5db, 20Hz - 20kHz
THD+N @ 1kHz, +4dbu: 0.01%
Maximum Level: +23dbu
Signal-to-Noise Ratio: -100db
EQ Bands: 4 bands, all +/-12db Peak/Dip type
Lo: 20Hz - 200Hz
Lo-Mid: 100Hz - 1kHz
Hi-Mid: 500Hz - 5kHz
Hi: 2kHz - 20kHz
Current: 65mA, 7.3VoltAmps
Dimensions: 2U EIA 19" Rack
Height: 3.5 Inches
Width: 19 Inches
Depth: 10 Inches
Weight: 13 lbs
Input Impedance: 12K Ohms
Output Impedance: 300 Ohms Transformer Balanced


Warranty Information

5 Years
