JDK R22 compressor

  • Image 1
Price:
$1,015.00
Brand:
Availability:
In Stock
Shipping:
Free Shipping
Quantity:


Product Description

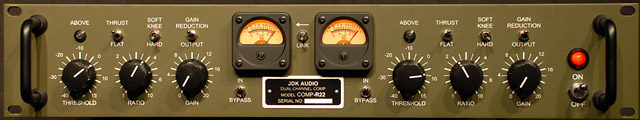

The JDK Audio R22 dual channel compressor features two channels of API's patented award winning compressor circuit in a rack mount unit with internal power supply. This is the same compressor circuit originally designed into all ATI Paragon mixing consoles. Each channel includes the patented 'THRUST' switch to protect the sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. The perfect companion to your R20 mic-preamp and R24 EQ, the R22 compressor provides comprehensive easy-to-use control of the audio signal with custom VU metering of both output and gain reduction. The two channels can even be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Features:

Patented THRUST circuit
Variable Threshold, Ratio, and Make-up Gain controls
Switchable metering of output level and gain reduction
Above threshold LED indication
Switchable Hard or Soft Knee compression
Linkable for stereo operation with true RMS power summing
Fully balanced XLR and 1/4" inputs and outputs


Warranty Information

5 years
