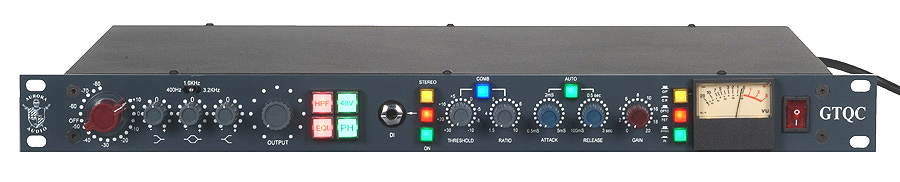

Aurora Audio GTQC Channel Strip

  • Image 1
In Stock
Free Shipping

Product Description

All Class A microphone and DI pre-amplifier, three band equalizer, and opto, FET, and opto + FET compressor

GTQC Preamp/ EQ Section Features :

The same transformer balanced Class A mic preamp/ EQ from the GTQ2
Direct input with 10dB gain and 10Mohm input impedance
Three band EQ provides + 15dB adjustment at 80Hz (Bass), 12KHz (Treble) and mid frequencies of 400Hz, 1,600Hz and 3,200Hz
80Hz 18dB/octave High Pass Filter
GTQC Compressor Section Features :

Both Fet and Opto compression
Hybrid combination mode which allows the use of both compression circuits on the same signal
Auto Release function that is well suited for vocals, bass, etc.
Compressor is also transformer balanced utilizes the same Class A amplifier stages as the GTQ2
Internal fully regulated power supplies with ample power reserves
Specifications :

Preamp Input impedance = 1,200 ohms or 300 ohms (switch selectable on rear panel) transformer balanced and floating
Compressor Input impedance = 10k ohms transformer balanced and floating
Both devices have transformer balanced and floating outputs that will drive any impedance from 600 ohms upwards
D.I. Input impedance = 10Megohms
Frequency response 20Hz to 50KHz + 1dB
Distortion 0.075% @ 1KHz
Preamp EIN -125dB @ 80dB gain
Compressor Noise -75dB (20 to 22KHz)
Dimensions 19" x 1U x 11" (482.6mm x 44.45mm x 279.4mm)
Weight = 20lbs

Warranty Information

2 years
