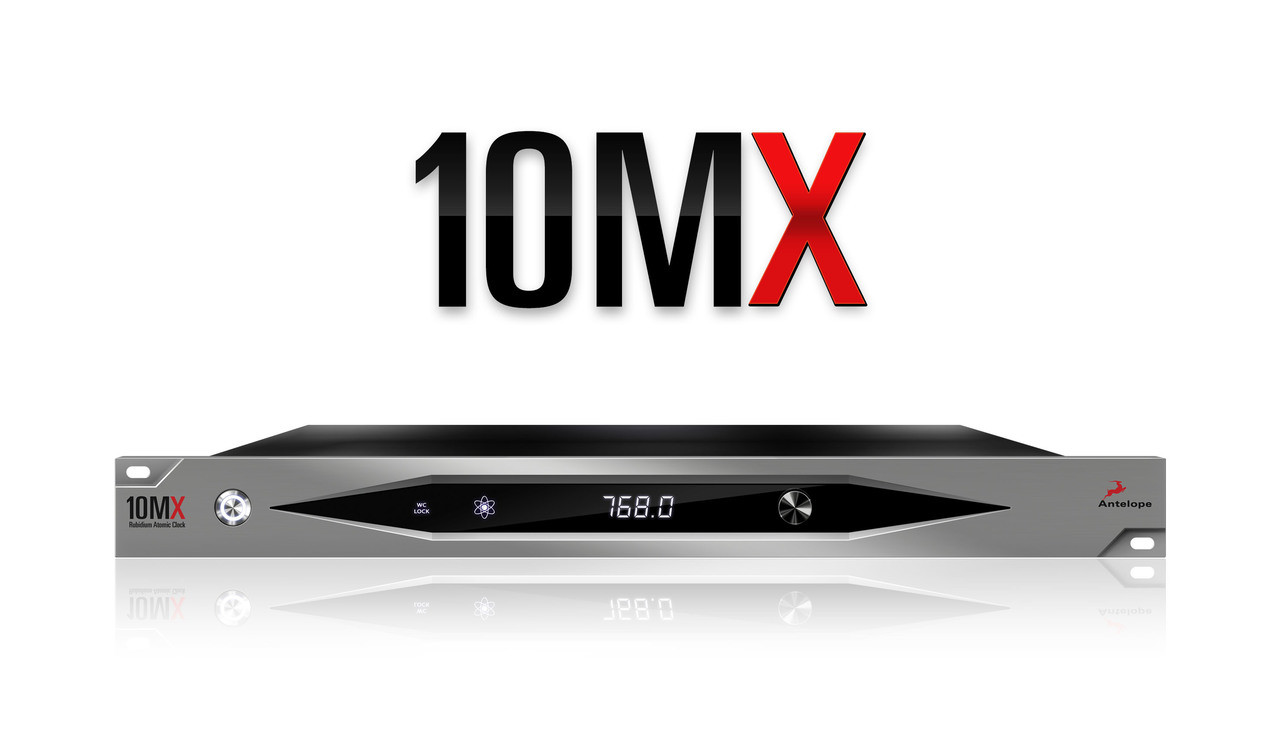

Antelope Isochrone 10MX Rubidium Atomic Master Clock

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$6,495.00
Availability:
In Stock
Shipping:
Free Shipping
Quantity:


Product Description

10MX

Rubidium Atomic Clock

FUSION OF FLAWLESS CLOCKING TECHNOLOGIES

10MX features the atomic precision of 10M and Trinity’s groundbreaking jitter management algorithm

10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world’s most stable and musical clocking.

10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.



10mx features:

4 WORD CLOCKS

The master clock beast: 4 Word Clocks allowing up to 768 kHz

64-BIT ACOUSTICALLY FOCUSED CLOCKING

Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm

MULTIPLE ATOMIC OUTPUTS

The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked

ADDITIONAL OUTPUTS

2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz

MAXIMUM CONTROL

Intuitive Software Control Panel



PC/MAC CONNECTION

PC/Mac connection via USB, allowing remote control and firmware upgrades

ATOMIC CLOCKING

10MX fits any studio environment – from recording to mixing and mastering

10MX is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity.

The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.

 ADVANCED CONTROL

Access all features of 10MX via its user-friendly software app or from the sleek front panel

The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.

THE LEGEND GROWS

The 10MX continues the legacy of the world renowned 10M and Trinity

The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensional distinctive of the analog sound.





SPECIFICATIONS:

Phase Noise (SSB)

1Hz ≤-70 dBc/Hz

10Hz ≤-87 dBc/Hz

100Hz ≤-114 dBc/Hz

1kHz ≤-130 dBc/Hz

10kHz ≤-140 dBc/Hz

Short-Term Stability

t=1s ≤3E-11

t=10s ≤1.6E-11

t=100s ≤8E-12

Time drift in a 24-hr period:

 Warm-Up Time

 8 – 10 minutes (depends on ambient temperature)

Word Clock Input

 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz

Maximum shock

withstanding

Non-operating, flight case mounted:

100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008

Non-operating, in original packing:

300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008

* g – gravitational acceleration

Outputs

Word Clock: 4 x BNC

AES/EBU: 2 x XLR

S/PDIF: 2 x RCA

Word Clock Outputs

 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal

USB I/O

 USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B

Clocking System

 4th Generation Acoustically Focused Clocking

 64-bit DDS

 Oven Controlled Crystal Oscillator

Clock Stability

 <+/-0.0 2 PPM, oven controlled at 64.5 °C

 Atomic Reference Type

 Rubidium Ultra-Stable Resonance-Controlled Master Oscillator

Frequency

 10 MHz

Frequency Accuracy

 Better than ±5E-11 @25C (±0.05 PPB)

Aging

 Daily* ±2.5E-11

 Monthly* ±1E-10

 Yearly ±1E-9

(*After 1 day & 1 month of operation respectively)

Atomic Clock Outputs

 10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)

Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768

Word Clock Specs

 TTL Level, 75 Ohm Output Impedance

USB

 USB 2.0 Full-Speed, Type B, only for control

Operating Temperature

 0-50°C, 32-122°F



Weight

2.8 kg/6.17 lb



Dimensions

482.6 (W) х228 (D) х 44 (H) mm

19 (W) x 9 (D) x 1.73 (H) inch



Power Supply

 AC

Power Consumption

15 W

Humidity

 30 – 80% RH non-condensing

Power Supply Input

 100 – 240 V~



System Requirements

Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth (for firmware update): 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.




Product Videos

10MX Rubidium Atomic Clock | Antelope Audio (01:49)
10MX is the newest member of the Isochrone family, fitting the atomic precision of 10M and Trinity's acclaimed jitter-management algorithm in 1U rack space. Uncompromising on any level – that's in short about Antelope Audio's 10MX Rubidium Atomic Clock. A descendant of the Isochrone product line, it features technologies from two of our legendary products. The 10MX is where the atomic precision of 10M meets the sophisticated jitter-management algorithm of Trinity. The device not only continues, but expands this legacy by allowing up to 10 devices to be simultaneously clocked over 10MHz BNC outputs. 10MX supports clocking up to the remarkable 768KHz, but can also operate on all standard rates. By using a new and smaller atomic oscillator, Antelope Audio managed to reduce the size of the unit and revolutionized the market once again by fitting everything 10MX has to offer in only 1U rack space. However, the new oscillator is not only smaller, but combined with an updated power supply it offers revised and improved sonic stability – thus better audio quality than ever before. Another 10MX novelty is a new, OS X and Windows compatible, software panel for remote control of the clock rates and display brightness. Hungry for more? Find everything 10MX here: http://antelopeaudio.com/products/10mx/ Never miss a post from Antelope Audio: https://facebook.com/AntelopeAudio http://twitter.com/AntelopeAudio
  • 10MX Rubidium ...
    10MX is the newest member of the Isochrone family, fitting the...

Warranty Information

2 years
